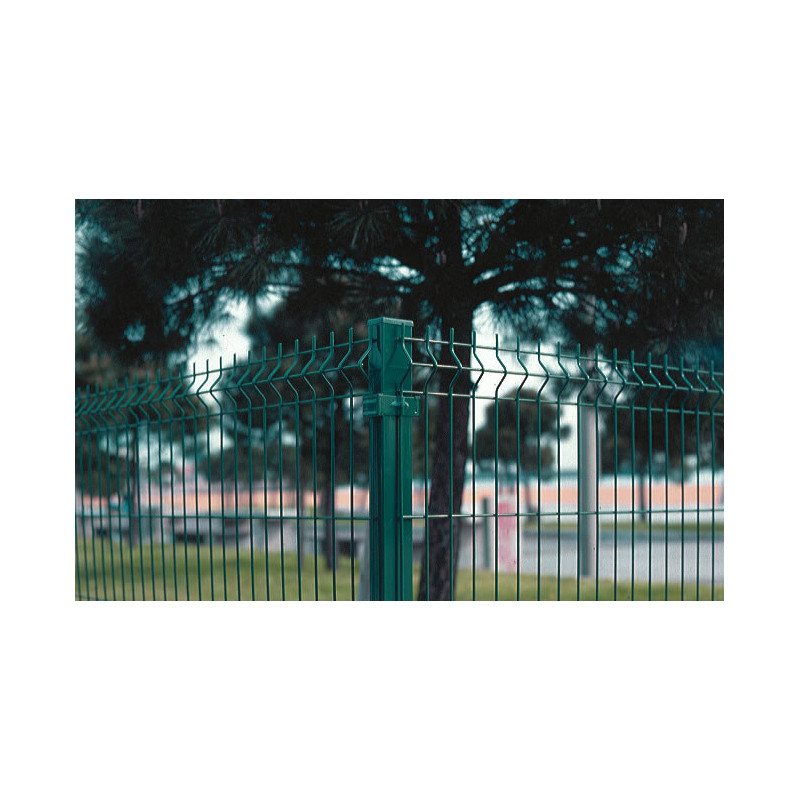

HERCULES FENCE 2M GREEN
$225.00
XCD Prices do not include vat*
485001
|
Hercules Panel |
||||
|
Steel Characteristics |
||||
|
Type: C9D Standard :ISO 16120-2 |
||||
|
C |
Mn |
Si |
P |
S |
|
(%) |
(%) |
(%) |
(%) |
(%) |
|
≤ 0.10 |
0.35 ÷ 0.6 |
0.1 ÷0.2 |
≤ 0.035 |
≤ 0.035 |
|
Wire Characteristics |
|||
|
Type: C9D Standard :ISO 16120-2 |
|||
|
Nominal Diameter |
Tensile Strength |
Weight Coating |
|
|
(mm) |
(N/mm²) |
(g/m²) |
|
|
Line Wires |
5 |
≥ 580 |
≥ 40 |
|
Stay Wires |
|||
Zinc Coating Characteristics:
- Type: Z1 of 99.995% Min
- Zinc According with: EN 1179
- Weight Coating According with: EN 10244-2
Organic Coating Characteristics (Plastic):
- Product – Polyester
- Density – 1.2 -1.9 kg/m³
- Thickness - >100 µm
Tolerances on mesh dimensions:
- Horizontal wire mesh: ±2mm
- Vertical wire mesh: ±2mm
- Vertical wires end tolerances: ≤ 10mm
- Horizontal wires end tolerances: ±2mm
- Theoretical diagonal panel: ± 0.25%
Hercules Post
Steel Characteristics:
- Galvanize Sheet: DX51D+Z140
- Tube: 60x40 mm
- Thickness: 1.5mm
Zinc Coating Characteristics:
- Type: Z1 of 99.995% Min
- Zinc According with: EN 1179
- Weight Coating According with: EN 10244-2
Organic Coating Characteristics (Plastic):
- Product – Polyester
- Density – 1.2 -1.9 kg/m³
- Thickness - >80 µm
Ultrafix Bracket
Characteristics:
- Product – Polyester
- Density – 1.13 kg/m³
- Hardness -79 (ISO 1183)
- Tensile Strength – 75 N/mm² (ISO 527)
- Thickness - >100 µm
The market benchmark. It’s ideal for industrial estates, office buildings, airports, parks and gardens.
What colors are available?
Green & White are available.
What heights are available?
5 ft and 6ft
