HERCULES FENCING POST 2M PANEL

$80.00 XCD Prices do not include vat*
485020
Quantity

Hercules Panel

Steel Characteristics

Type: C9D                                                                                          Standard :ISO 16120-2

C

Mn

Si

P

S

(%)

(%)

(%)

(%)

(%)

≤ 0.10

0.35 ÷ 0.6

0.1 ÷0.2

≤ 0.035

≤ 0.035





Wire Characteristics

Type: C9D                                                                                          Standard :ISO 16120-2


Nominal Diameter

Tensile Strength

Weight Coating


(mm)

(N/mm²)

(g/m²)

Line Wires

5

≥ 580

≥ 40

Stay Wires



Zinc Coating Characteristics:

  • Type: Z1 of 99.995% Min
  • Zinc According with: EN 1179
  • Weight Coating According with: EN 10244-2

Organic Coating Characteristics (Plastic):

  • Product – Polyester
  • Density – 1.2 -1.9 kg/m³
  • Thickness - >100 µm

Tolerances on mesh dimensions:

  • Horizontal wire mesh: ±2mm
  • Vertical wire mesh: ±2mm
  • Vertical wires end tolerances: ≤ 10mm
  • Horizontal wires end tolerances: ±2mm
  • Theoretical diagonal panel: ± 0.25%

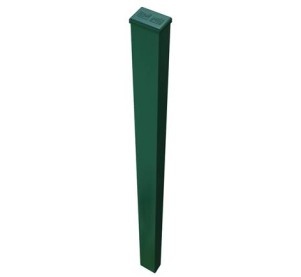

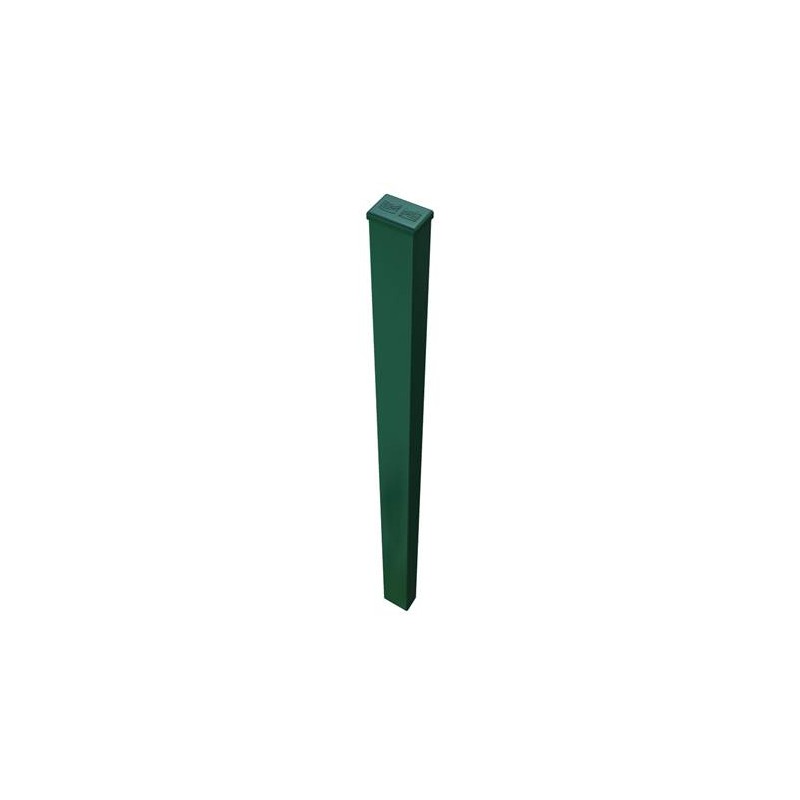

Hercules Post

Steel Characteristics:

  • Galvanize Sheet: DX51D+Z140
  • Tube: 60x40 mm
  • Thickness: 1.5mm

Zinc Coating Characteristics:

  • Type: Z1 of 99.995% Min
  • Zinc According with: EN 1179
  • Weight Coating According with: EN 10244-2



Organic Coating Characteristics (Plastic):

  • Product – Polyester
  • Density – 1.2 -1.9 kg/m³
  • Thickness - >80 µm



Ultrafix Bracket

Characteristics:

  • Product – Polyester
  • Density – 1.13 kg/m³
  • Hardness -79 (ISO 1183)
  • Tensile Strength – 75 N/mm² (ISO 527)
  • Thickness - >100 µm

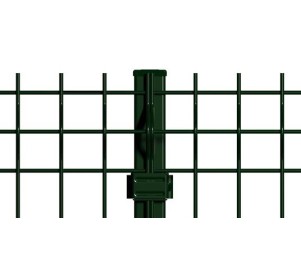

The Hercules fence is a metal panel with one of the largest bends on the market. These characteristic 44 mm high bends, with the 5 mm diameter of the powder coated wires, make the product robust and resistant.



The vertical wires protrude 25 mm above the upper horizontal wire, making it more defensive. It is a very versatile enclosure, ideal for fencing off industrial estates, administrative buildings, airports, parks and gardens. It can be fitted with a PVC privacy kit to make the enclosure totally opaque. It can also be combined with the panel accessory, to fix the panel to a wall without using a post.

What colors are available?

Green & White are available.

What heights are available?

5 ft and 6ft
